BULK / BULLET INSTALLATION
Bullet Storage on turnkey Basis as per the rules & regulations stipulated by Explosive Norms & Statutory Required
There are three types of bulk installations – Above ground, Mounded & Underground.
Whenever monthly demand exceeds 3MT it is advisable to have bulk storage facility.

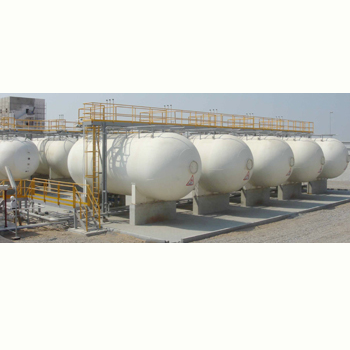

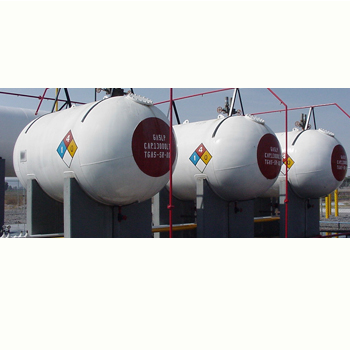

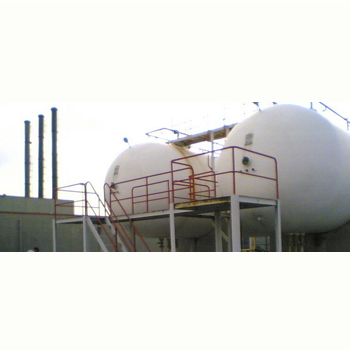

The bulk storage vessels are called bullets. Large scale
industries where huge consumption is required are the main users
of Bulk Installations. The sizes of the tanks required are based
on the peak consumption. LPG storage tanks are filled to 85% of
the capacity to facilitate expansion. The remaining space is
filled with vapor LPG. As the vapor is withdrawn from the tank
the vapor pressure inside the tank falls and the liquid inside
the tank boils producing more vapors and restoring the pressure.
The liquid absorbs the heat required for boiling from the surface
area of the tank. All the designs are as per the standard codes.
The storage tanks are equipped with all standard accessories
like Rochester gauge, Remote operated valves, Regulators, Excess
flow check valves, Gauges, Instruments & controls etc. We
undertake project execution on turnkey basis duly approved by
CCOE (chief controller of explosives) & as per SMPV rules.
Our turn key Installation covers:
- Preparation & approval of drawings
- Supply & erection of tanks with complete standard accessories
- Supply & Installation of Pumps, Vaporizers, Pipes & Pipe fittings etc
- Supply & installation of Cathodic protection
- Supply & installation of safety fire fighting equipments
- Testing, painting & commissioning of the entire system
- Third party inspection & liaison with department of explosives
- Gas monitoring systems
- Maintenance & inspection of the system
OUR DESIGN & INSTALLATION SYSTEMS CONFIRMS TO:
- I.S.6044
- Gas Cylinder rules 2004
- OISD Guideline
